ViewSonic · LDS136-152
Mobile folding LED wall.
A complete 136" Full HD wall that rolls through doorways and is running in 10 minutes. No tools. No wall mounting.
136"
Full HD diagonal
10 min
tool-free setup
1 148 mm
height adjustment
IP65
front protection
01 / roll it in
Rolls through doorways and elevators.
Folded it measures 1,821 × 1,948 mm and rolls on its own wheels. A transport flight case covers moves between buildings.
02 / unfold
No tools. No mounting. 10 minutes.
The pre-assembled structure unfolds by hand without a single tool, and the stand adjusts the picture height by up to 1,148 mm. All it needs then is a socket.
03 / switch it on
600 nits. No dimming needed.
The 136" Full HD picture stays readable in a fully lit room. Share content wirelessly from several devices at once; sound plays from the integrated 2× 30 W speakers.
ViewSonic LDS136-152
136"
Full HD diagonal
10 min
tool-free setup
1 148 mm
height adjustment
IP65
front protection
deployed worldwide
The five-star Gaia Hotel
One mobile LED wall for the hotel conference and social spaces - 26 event venues across floors.
Learn more→
Bankstown Sports Group
The mobile LED moves between venues, events and sports broadcasts.
Learn more→
Corporate campus
Two mobile LED walls shared between departments for town halls, meetings, presentations and the lobby.
Learn more→
Deployments published in official manufacturer case studies.
use cases
One wall, a different room every day

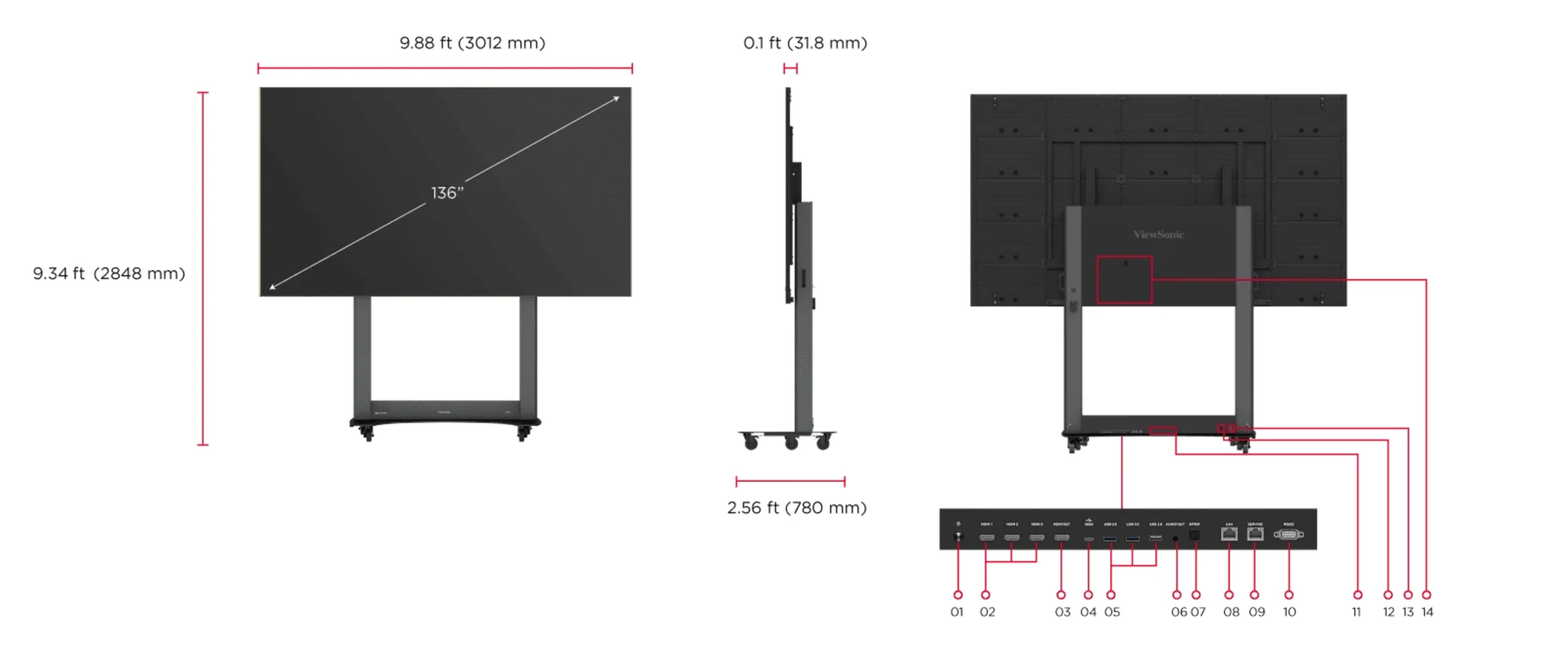

dimensions & i/o
Dimensions and connectors
4× HDMI 2.0 (1× out)3× USB-AUSB-C3× RJ45 (LAN, service)RS232S/PDIF + audio outOPS slotWi-Fi 2.4/5 GHz
specifications
ViewSonic LDS136-152
- Diagonal
- 136" (Full HD 1,920 × 1,080, input up to 4K@60)
- Pixel pitch
- 1.56 mm
- Brightness / contrast
- 600 nits (100 levels) / 6,500:1
- Folded dimensions
- 1,821 × 1,948 × 780 mm
- Unfolded dimensions
- 3,012 × 2,848 × 780 mm
- Weight
- 269.5 kg (with mobile stand)
- Height adjustment
- up to 1,148 mm
- Power typ / max
- 609 / 1,827 W
- Audio
- 2× 30 W integrated
- Protection (front)
- IP65 / IK06
- Control certification
- Q-SYS, Crestron
documentation
Downloads
Czech technical sheet, mechanical drawings and project documentation are part of our quote - request them below.
Frequently asked questions
How long does it take to get the mobile LED wall running?
About 10 minutes. The wall comes pre-assembled, unfolds without tools and needs no wall mounting - roll it in, unfold, plug in and it plays.
Does the folded wall fit through doorways and elevators?
Yes, the foldable design is made to pass through doorways, elevators and tight spaces. Folded it measures 1,821 × 1,948 × 780 mm and rolls on its own mobile stand; a wheeled flight case covers transport between buildings.
Does it need an external controller or audio?
No. It is an All-in-One solution: control electronics, power and 2× 30 W speakers are integrated. The stand allows adjusting the picture height by up to 1,148 mm. Content can be shared wirelessly from mobile devices and the system is Q-SYS and Crestron certified.
Can I see the mobile LED wall live?
Yes. We will gladly arrange a live demo - either at the manufacturer showroom or at one of the current installations. Reach out via the inquiry form and we will get back with a date.
How much does the mobile LED wall cost?
We quote per project - it depends on the configuration (stand, transport flight case, delivery) and whether you buy or rent. The offer always covers delivery, commissioning and operator training. Tell us what you want to use the wall for and we will prepare a specific quote.
Is it suitable for rental and repeated transport?
That is exactly what it is designed for: tool-free folding, a mobile stand, a transport flight case and IP65 front protection handle frequent moves between rooms and events. We provide operator training and service.
ViewSonic LDS136-152
Quote or a live demo
Tell us how you plan to use the wall - we will send a complete quote including delivery, training and service. And if you want to see it with your own eyes first, we will arrange a live demo at the manufacturer showroom or at a current installation.
