Barco Alchemy ICMP-X
the heart of digital cinema
BARCO ALCHEMY ICMP-X

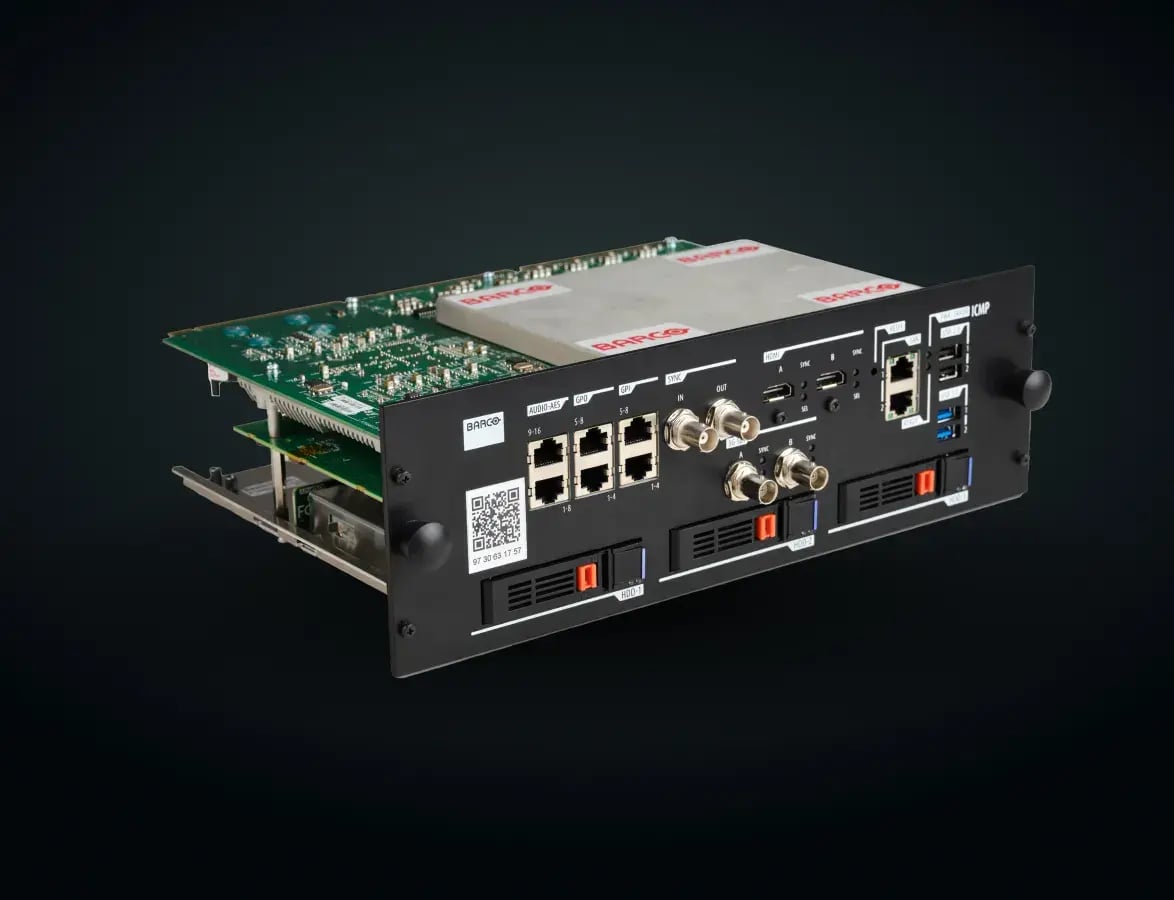

Barco Alchemy ICMP-X combines the functions of an integrated cinema processor (ICP) and a media server onto a single board, designed for seamless integration into your cinema ecosystem.
A robust solution for your cinema
Compatible with Series 2 and Series 4 projectors

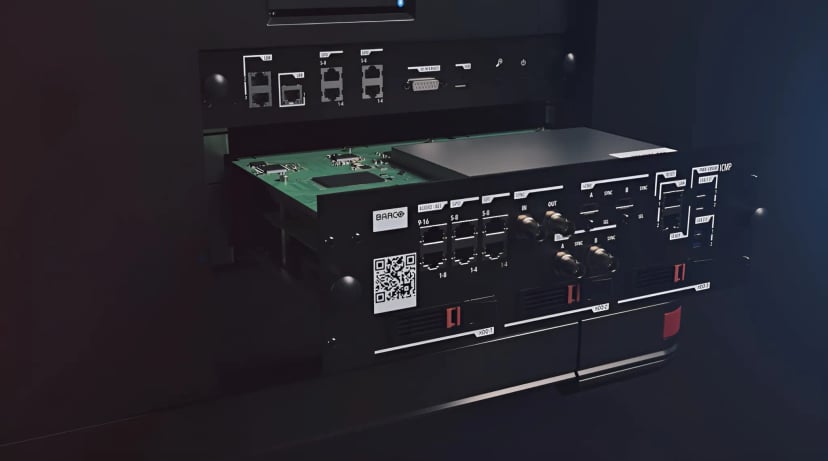

The ICMP-X is designed to be fully compatible with both Barco Series 2 and Series 4 projectors, offering flexibility for a wide range of cinema installations.
Full compliance with DCI standards
The device is fully DCI-compliant, ensuring top image quality and content security.
High frame rate (HFR) support
ICMP-X supports 2K 3D content up to 120 frames per second (60 fps per eye), enabling smooth playback of action-packed scenes. 25 fps support is standard.
4K resolution and multi-format support
Enables 4K content playback for sharp, detailed images. In addition to DCI content, it also supports MPEG-2 (4:2:0 and 4:2:2 up to 60 fps), providing flexibility for alternative content.
Fast content ingest
With two Gigabit Ethernet ports and two front USB 3.0 ports, the ICMP-X enables rapid content transfer to the device.
Integrated RAID-5 storage
Integrated storage up to 8 TB SSD (RAID-5) provides fast content access and data protection.
Fast switching between formats
The ICMP-X can automatically switch between different resolutions and frame rates within a single show, improving operational efficiency.

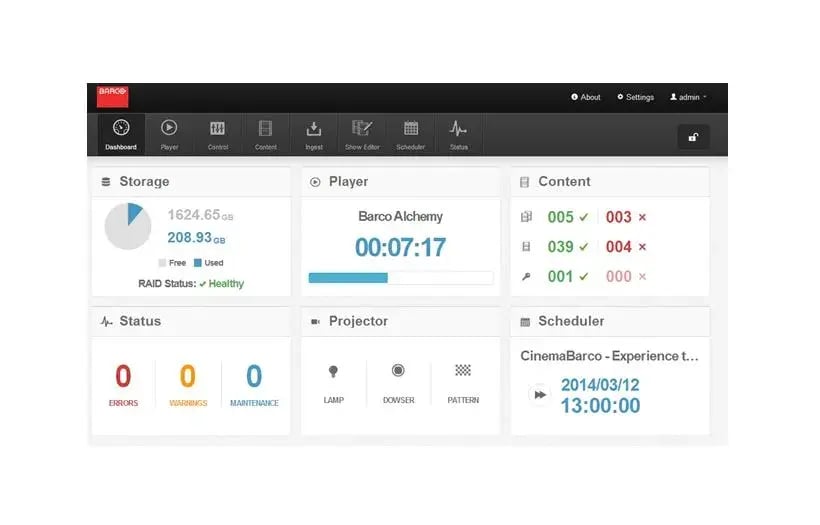

Intuitive Barco Web Commander interface
Provides intuitive control over the projector, including show creation and scheduling, simplifying daily operations.
Available in Czech
The control interface is clear and fully available in Czech.
Responsive design
The interface is accessible from desktop, tablet, and mobile devices.
Complete digital projection automation
Cinema automation delivers smooth show operation without manual intervention. The ICMP-X enables control of lights, curtains, HVAC, and the audio rack, ensuring a seamless experience.
Advanced macros and scenario scheduling make it easy to synchronize content playback with other in-hall technology. Reliability, efficiency, and maximum comfort - that is a modern cinema driven by intelligent automation.
The Heart of Digital Projection
The next-generation cinema server you will simply love.

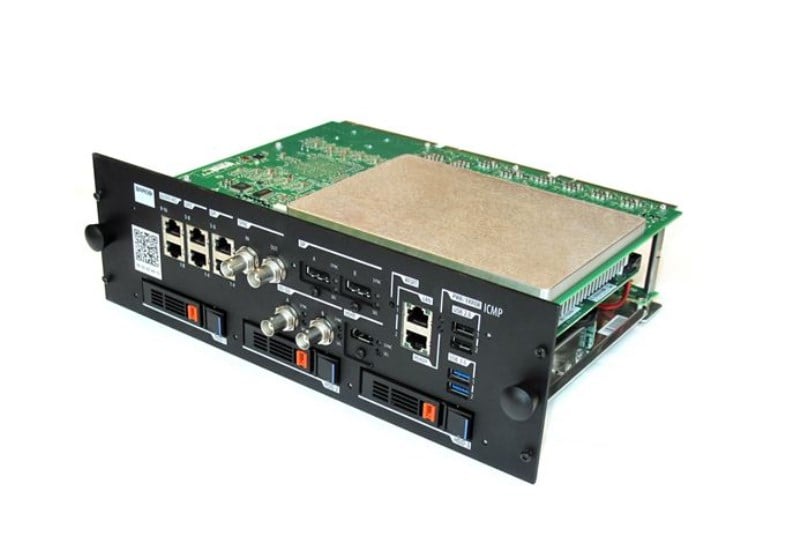

The Barco ICMP-X combines the functionality of an Integrated Cinema Processor (ICP) and a media server onto a single board, which forms the backbone of Barco Alchemy digital cinema projectors. Reducing the hardware footprint increases simplicity and reliability throughout the entire projection booth. The smart projector even detects potential operational errors and alerts the operator if something goes wrong. It ships with a rich set of inputs for alternative content and the most powerful DCI decoding engine on the market.
The BARCO ICMP-X is fully future-ready and significantly upgrades the capabilities of your projector. It works great alongside a TMS (Theatre Management System) in multiplexes, and a projector fitted with the ICMP-X performs equally well in single-screen cinemas. Barco ICMP-X is DCI-compliant and meets Compliance Test Plan (CTP) version 1.2.
Interested in the Barco Alchemy ICMP-X cinema server?
We will gladly help you choose the right solution and together take your cinema to the cutting edge of today's technology.
BARCO Alchemy - ICMP a ICMP-XS
Increased Operational Efficiency
The built-in Barco Web Commander web interface lets you control both the projector and the cinema server remotely, including show creation and scheduling. Full configuration and setup can also be completed easily by a technician using Barco Web Communicator.
Ready for the Future
When paired with a 4K digital cinema projector, Barco Alchemy technology supports up to 60 fps in 4K 2D projection, and covers all established standards for 4K 3D as well as 2K 3D HFR DCI films (High Frame Rates).
Unique Advantages of Barco Alchemy Technology:
Simple operation through the intuitive Barco Web Commander interface
Fewer boxes means higher reliability and easier day-to-day use
Future-ready thanks to high-resolution, high-frame-rate, high-bitrate capabilities
Dedicated RAID-5 storage controller included in the delivery
Intelligent switching between segments of a single show with different resolutions and frame rates
Intelligent switching between DCI and alternative content within one show
Rich set of inputs for alternative content
Specifications
Integrated Cinema Media Processor
- DCI 4K 2D up to 60fps
- DCI 4K 3D (24 or 30 fps per eye)
- DCI High Frame Rates 2K 3D up to 120fps (60fps per eye)
- JPEG 2000 bit-rates up to 625Mbps
- Dual-channel color-correction
- MPEG-2 (4:2:0 and 4:2:2 up to 60fps)
- 2x HDMI2.0a (up to 4K 2D 60fps)
- 2x 3G-SDI inputs
- 16x AES/EBU audio channels (2x RJ45)
- 8x GPI, 8x GPO (4x RJ45)
- 2x Gbe for content connectivity & ingest
- 2x front-accessible USB 3.0 for fast ingest
- 2x front-accessible USB 2.0
- Video and audio watermarking: Civolution NexGuard
- Closed captioning devices: Support for SMPTE 430-10
- Streaming of Live IP content
Barco Web Commander
- Projector dashboard
- Projector control board
- Show player/editor/scheduler
- Automation, 3D, Ingest
- Smart projector status
- Via HTML5 web browsers including iOS & Android tablets
- Compatible with free Barco CineMate iOS & Android app
Barco Commander (for touch panel controller)
- Projector control board
- Show Player/Editor/Scheduler
- Automation, 3D, ingest
- Dynamic DCP playlists & intermission
- Smart projector status
Barco (Web) Communicator
- Projector installation & configuration
- Projector update & maintenance
- Barco CineMate App (iOS & Android) - free
Integrated storage
- 2TB effective storage (RAID-5) / 3x 1TB Hot-swappable 2.5" hard-drives
- 4TB effective storage (RAID-5) / 3x 2TB Hot-swappable 2.5" hard-drives
- 8TB effective storage (RAID-5) / 3x 4TB Hot-swappable 2.5" solid state drives
Options
- ICMP License for HDMI2.0 HDR
- ICMP License for Live IP
Compatibility
- Barco Alchemy is supported by the following Theater Management System (TMS) brands: AAM Screenwriter, Ymagis Melody, CFG-Barco, Unique RosettaBridge, ADDE, CineDigital Manager, GDC, Proyecson, Real Image, Sony, Hollywoodsoftware/Comscore TCC, Kinoton
- Barco Alchemy is supported by 4DX Experience
