DCI Projectors

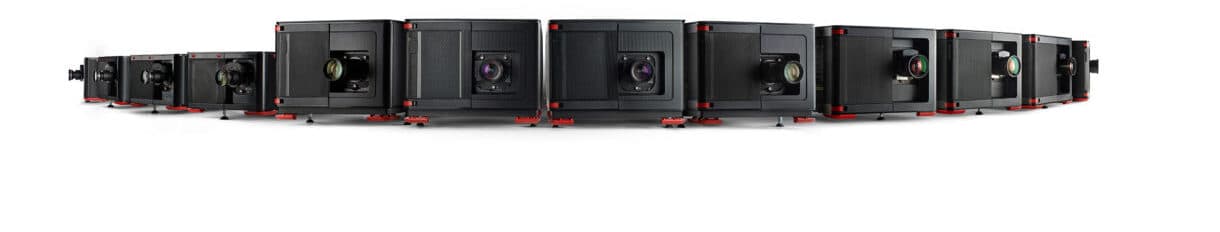

Barco laser projectors Series 4

A new generation of projectors for every cinema

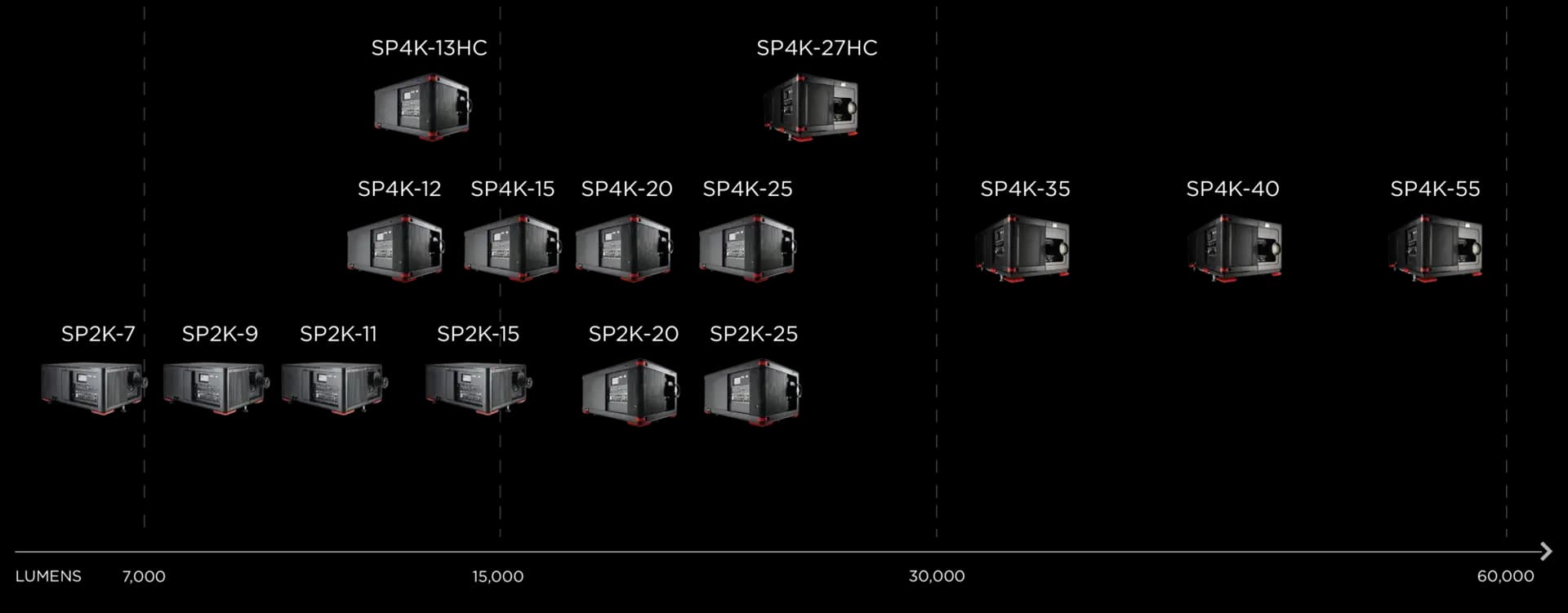

The Barco Series 4 projector lineup offers top-tier performance, energy efficiency, and environmental responsibility for cinemas of every size.
Why Choose Barco Series 4
Feel part of every scene with razor-sharp clarity
Next-generation laser projection delivers an image that pulls you into every scene. Rich colors, fine detail, and flawless sharpness let you experience the film exactly as the director intended.
Colors that come alive
Imagine a blue sky so vivid you want to reach out and touch it. Barco laser projectors reproduce colors so naturally and intensely that you forget you are in a theater - you feel like you are right in the middle of the action.
Consistent quality, no compromises
Forget the fading image of an aging lamp. Laser technology delivers stable brightness and a clean picture with no flicker. Every frame looks exactly as the director intended.
Designed with cinemas in mind
The Barco Series 4 lineup was developed in collaboration with cinema operators, so it precisely matches their needs. From early design through installation, everything is optimized for reliable, effortless, high-quality projection.

A small step for the cinema, a giant leap for audiences
With Barco Series 4 you get a projection platform built for the future. Elevate the cinema experience and give audiences a picture quality that exceeds every expectation.
Ready for the next generation
SP4K projectors use top-tier Texas Instruments chipsets, handle 4K at 120 frames per second, and are prepared not only for today's films but also for future formats and alternative content.
Colors meeting the highest standards
Barco Colorgenic(tm) technology delivers the full P3 color gamut on SP2K models and up to 98.5% of the Rec. 2020 standard on SP4K models. The result is an exceptionally wide color palette that takes the cinematic experience to the next level.

Reliable operation without compromise
Barco Laser Plates(tm) provide a well-engineered solution for long-term projector longevity. Barco Series 4 projectors are designed with an emphasis on reliability and easy maintenance, whether installed in a projection booth or directly in the auditorium.
Modular design for efficient servicing
Thanks to Barco Laser Plates(tm) technology, light modules can be swapped without complex modifications, simplifying maintenance and ensuring long-term operational reliability.
Ready for boothless operation
The compact design and integrated cooling make Barco Series 4 projectors ideal for placement directly in the auditorium. Low noise output (as low as 40 dB(A)) contributes to maximum audience comfort.
Compatibility with existing equipment
Barco Series 4 integrates easily into existing projection systems. It supports both original Barco lenses and compatible third-party models.

Eco-conscious projection on the big screen
At Barco, we focus on outstanding image quality and a more sustainable future. Series 4 projectors deliver a great visual experience with lower energy consumption, a longer lifespan, and optimized maintenance.
Energy efficiency
Barco Series 4 projectors use EcoPure(tm) technology, which reduces energy consumption compared to traditional lamp projectors. That means lower operating costs, a smaller carbon footprint, and more efficient use of power.
Long service life
With a lifespan exceeding 40,000 hours, Barco Series 4 laser projectors outlast their lamp-based counterparts by a wide margin. Laser technology significantly reduces the need for frequent interventions and replacements.
Modular design
The entire portfolio uses just five types of spare parts and six types of Barco Laser Plate(tm) modules, simplifying repairs and eliminating the need to replace the entire light source.

Smart Features for Smart Cinemas

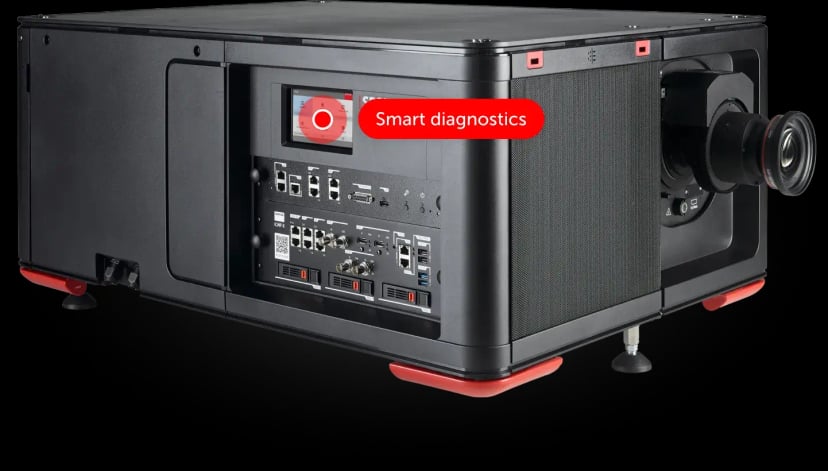

Smart diagnostics
Interactive touchscreen display
The clear touchscreen display shows not only projector errors but also warnings and system notifications, so you always have a real-time view of device status.
Web-based diagnostic tool
The Barco Web Analyzer simplifies diagnostics and troubleshooting. Its clean interface enables fast fault identification and efficient resolution, minimizing downtime and streamlining service calls.

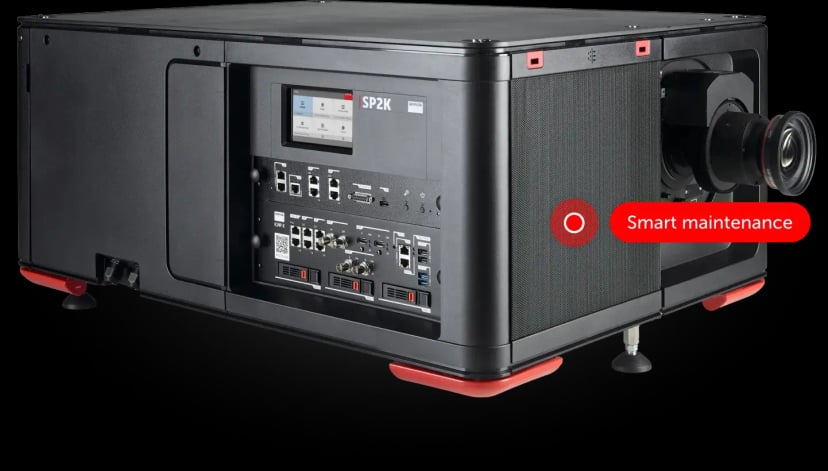

Smart maintenance
Improved optical system sealing
Better sealing of the projection module and light channel keeps the projector performing stably and reliably even in demanding environments.
Washable filters
Maintenance is easier thanks to washable filters that extend projector life and contribute to greener operation.
More efficient cooling
Improved airflow and more effective cooling eliminate the need for liquid top-ups and ensure optimal projector operation.
Intelligent sensor
A smart sensor alerts you in advance when maintenance is due, so you always stay in control and can prevent unplanned outages.

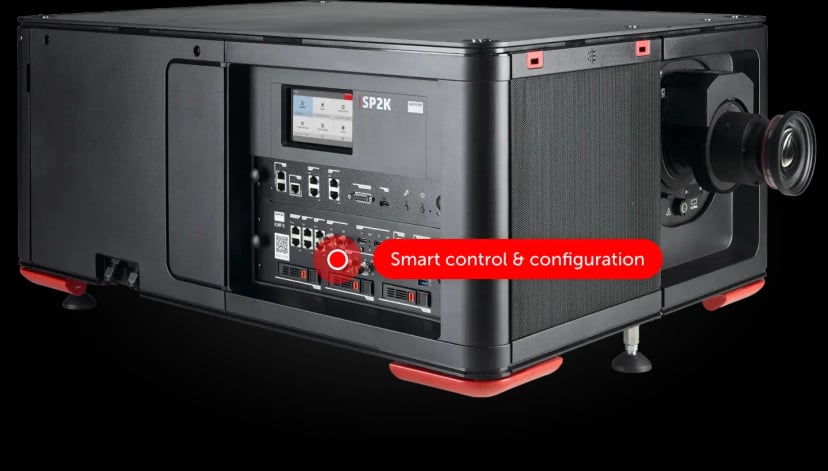

Smart control and configuration
Integrated media server
The built-in media server ensures smooth content management and easy integration into the projection system.
Intuitive controls
A clean, user-friendly web interface makes projector setup and day-to-day operation straightforward.
Broad ecosystem support
Support for a wide range of systems enables easy automation and advanced monitoring, simplifying management even in large multiplex cinemas.

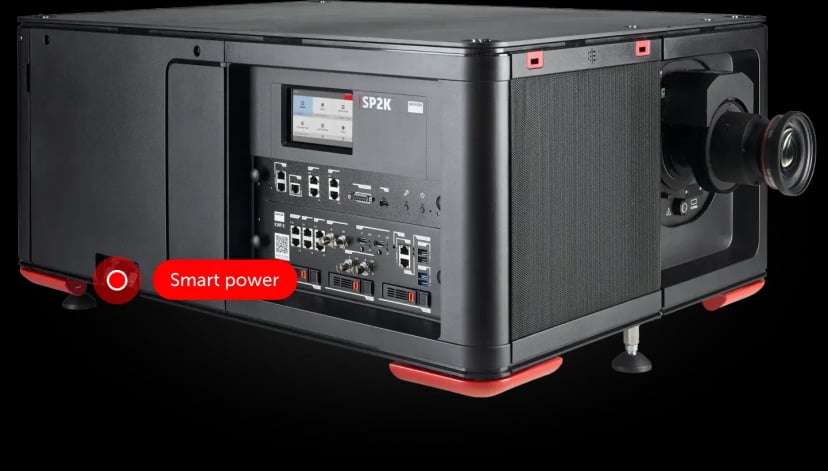

Smart power
Single-phase and three-phase power support
SP2K-7/9/11/15 models support single-phase power at 120 V, while all other Series 4 models allow three-phase connections.
UPS inputs
Ensure uninterrupted operation with built-in support for UPS backup power connections.
Best-in-class energy efficiency
The integrated projection system achieves energy efficiency of up to 11.5 lumens per watt, delivering more than 50% energy savings compared to xenon projectors.
Sleep mode
The eco-friendly sleep mode on Barco Series 4 consumes just 3 watts per hour. With remote wake-up support, it is ideal for automated maintenance.

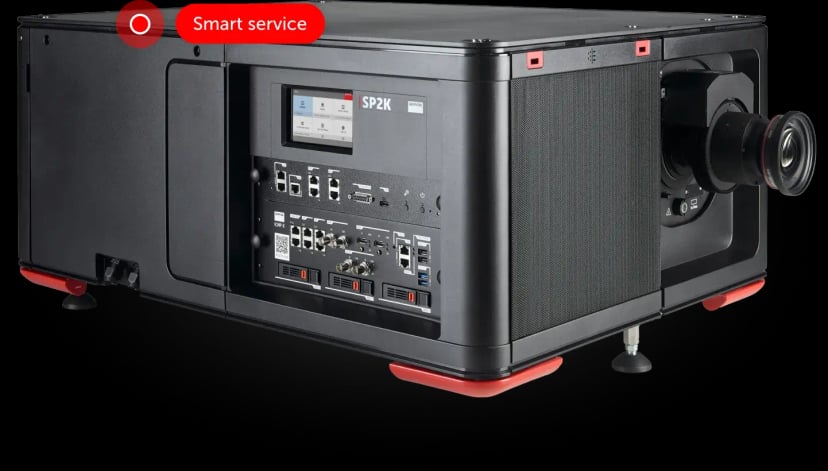

Smart service
One tool type
All service tasks can be completed with a single tool type, available in three sizes (M10, M15, M20), simplifying maintenance and parts replacement.
Easy access to main components
Side access to key components makes maintenance more comfortable and faster, minimizing the time needed for service calls.
Modular design
Laser modules and light processor connectors are designed for easy replacement, simplifying maintenance and ensuring stable long-term operation.
Reliable operation with a long service life
Pumps and fans are built for up to 50,000 hours of operation, guaranteeing stable performance and long-term projector reliability.

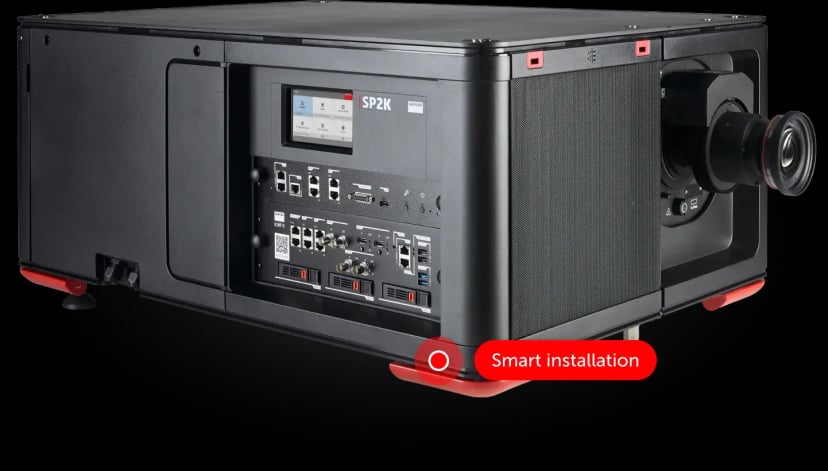

Smart installation
Integrated carry handles
Built-in handles make it easier to move and transport the projector, simplifying the installation process.
Compact design with no external components
The projector requires no external components such as cooling units or a media server, making setup straightforward and keeping the work area tidy.
Compatibility with existing equipment
Barco Series 4 projectors can reuse accessories from the Series 2 lineup, including power cables, pedestals, lenses, 3D kits, interfaces, and air ducts, supporting a sustainable approach and easing upgrades.

// how we work
From design to 24/7 service. One team.
- 01
Design
Acoustics, optics, sightlines. We design the auditorium before you buy a projector.
- 02
Project
Equipment specification, schedule and budget for the delivery before the order is signed.
- 03
Delivery
Projection, sound, LED and automation wired into one functional system.
- 04
Calibration and commissioning
Calibration, DCI compliance, operator training. We hand over a screen-ready venue.
- 05
24/7 service
Remote monitoring and 24/7 service support. We watch your cinema so it never goes dark.
Ready to go laser?
Discover the secret behind exceptional image quality - it's no coincidence that leading cinema operators and projection system owners around the world trust Barco laser technology.
The projector is just the beginning. What's next?
A great picture is only part of the total experience. For truly outstanding projection you also need to think about the other key elements. Whether you need a cinema server for reliable content delivery, the perfect screen, enhanced audio, or are considering a laser upgrade for the Series 2 lineup, we have a solution for you.
We'll find the right solution for your cinema
Whether you are looking for a new projector, an upgrade to your existing technology, or a fully custom solution, we are here for you. We are happy to help with product selection, system design, and installation.
