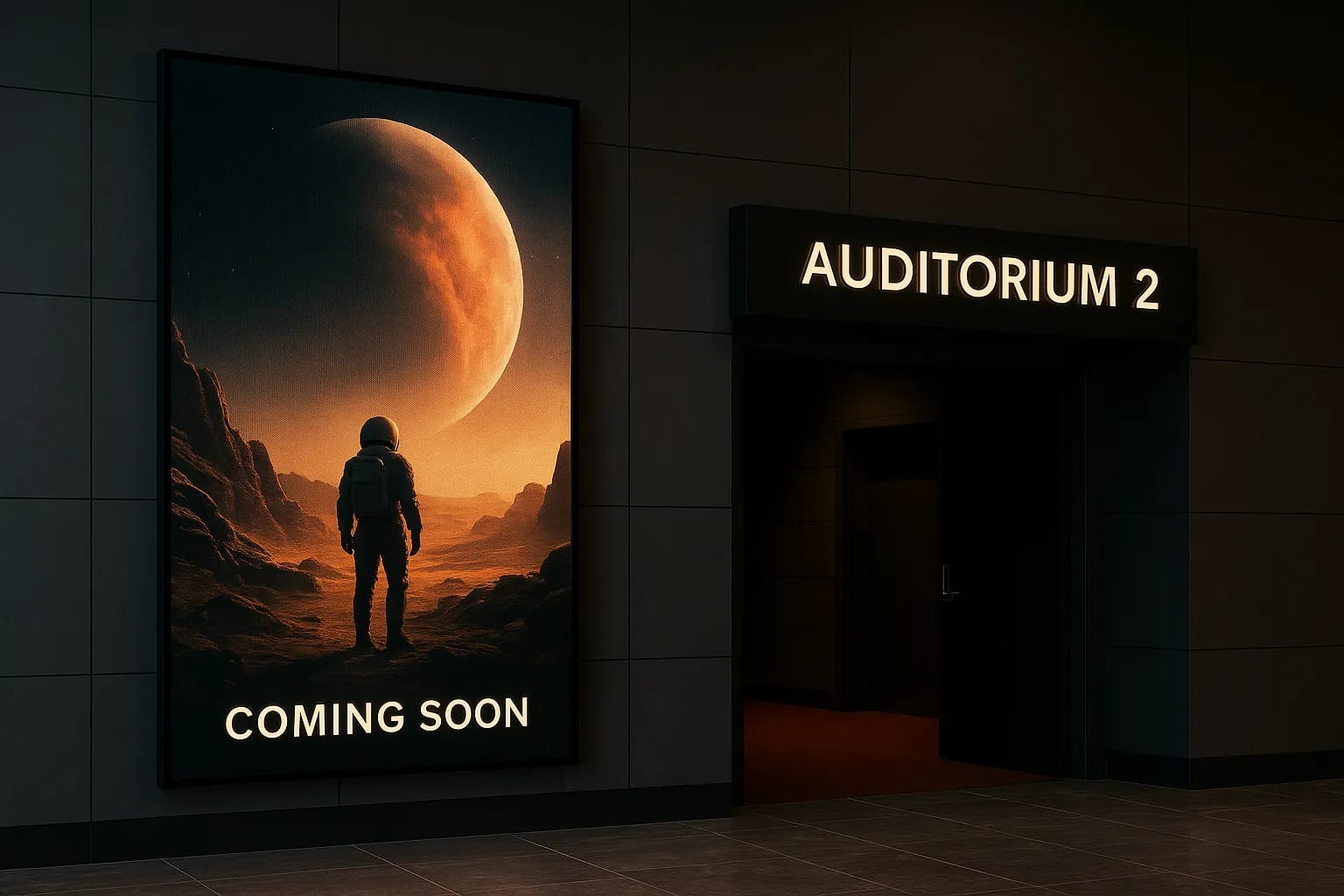

Interior - small and mid-size halls
Perfect image even at close range thanks to fine pixel pitch - ideal for conference rooms and multimedia halls.
Professional AV integrator
LED Large-format displaysCustom solutions for every space
Perfect image and an unmissable experience wherever you want it.
Custom solutions for every space
We design and install LED walls and screens for indoor and outdoor use: halls and cultural centres, meeting rooms and lobbies, retail spaces, building facades and outdoor advertising surfaces. We deliver them turnkey, including the support structure, mounting, commissioning, operator training and follow-up service. We build on installing professional AV technology in cinemas and halls, work we have been doing since 2008, where the same rules apply: structural safety, precise image calibration and equipment that has to run reliably every day.
How an LED wall is chosen
Three parameters decide. Pixel pitch follows the viewing distance: indoors we typically choose 0.9 to 2.5 mm, for outdoor surfaces watched from a distance 4 to 10 mm. Brightness follows the lighting, because an LED screen is an active light source and needs no blackout. And the build follows the environment, where an outdoor installation requires an IP65 or higher rating and a more rugged structure. You can work out the size and cabinet layout in our LED calculator and compare the raster in the pixel pitch simulator.
IndoorOutdoorRentalCreative formats
We supply and install turnkey
We are XC tech s.r.o., a systems integrator of professional AV technology. We supply LED walls and screens turnkey across the Czech Republic and Slovakia: we design the solution, deliver it, install it, commission it, train the operators and service it afterwards. Typical places we deliver to: cultural centres and halls, cinemas and their lobbies, meeting rooms and boardrooms, lobbies and receptions, shopping centres and shops, sports venues, building facades and outdoor advertising surfaces.
- Design
- Pitch, size and build chosen for the space, light and viewing distance.
- Supply
- Panels or a complete display, structure, control and cabling from one supplier.
- Mounting
- Professional installation on a wall, structure or fly bar, including work at height.
- Commissioning
- Brightness and colour calibration, signal source integration, operator training.
- Service
- Warranty and post-warranty service, spare modules and remote monitoring.
Solutions by use case
Each application has its own requirements for pitch, brightness and build. Pick your use case for details, parameters and FAQs.
Looking for a ready-made indoor wall instead of a modular build? All-in-One LED walls are pre-assembled units - fixed, mobile or configurable.

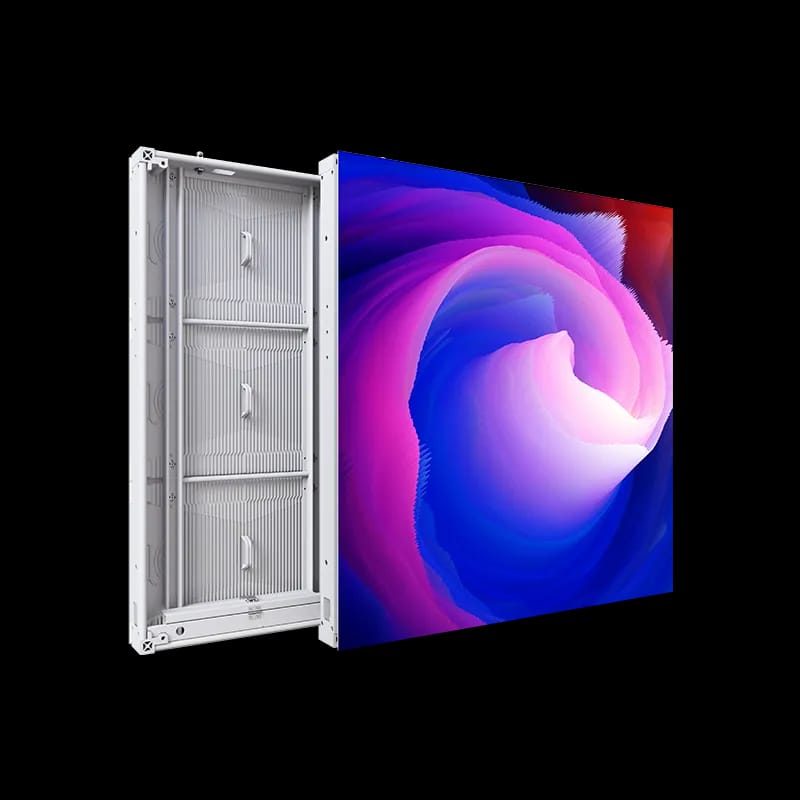

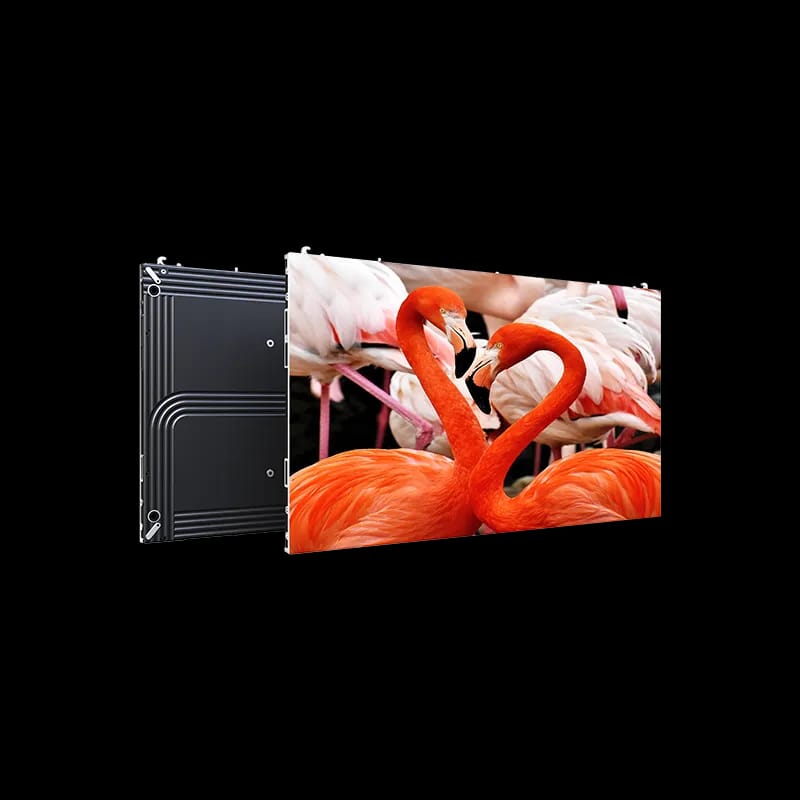

All-in-One LED wallsIndoor
Interior installations
The ideal choice for indoor spaces where image quality and elegant design matter most.
- Perfect image even at close range
- High brightness and contrast for any situation
- Wide viewing angles for optimal visibility
- Maintenance-free operation thanks to robust construction
Suitable for:
- Conference halls
- TV studios
- Shopping centres
- Presentation rooms

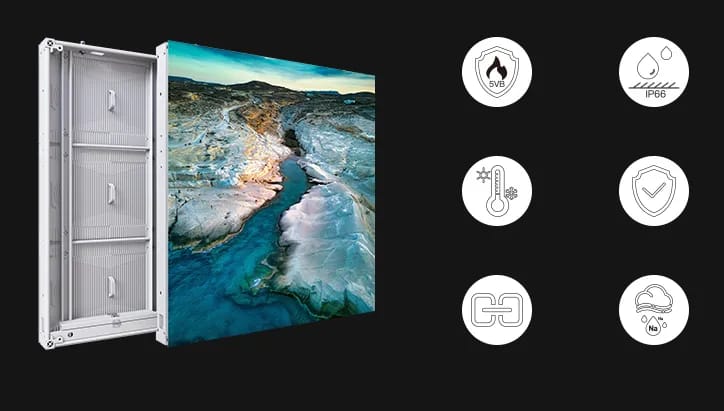

Outdoor
Outdoor LED installations
Outdoor displays are engineered to withstand the elements and deliver a clear image even in direct sunlight.
- Waterproof and dustproof design (IP rating)
- High brightness for readability in daylight
- Robust construction resistant to impacts and vibration
- Long service life even in demanding conditions
Suitable for:
- Urban advertising surfaces
- Sports stadiums
- Outdoor stages
- Festivals and public events

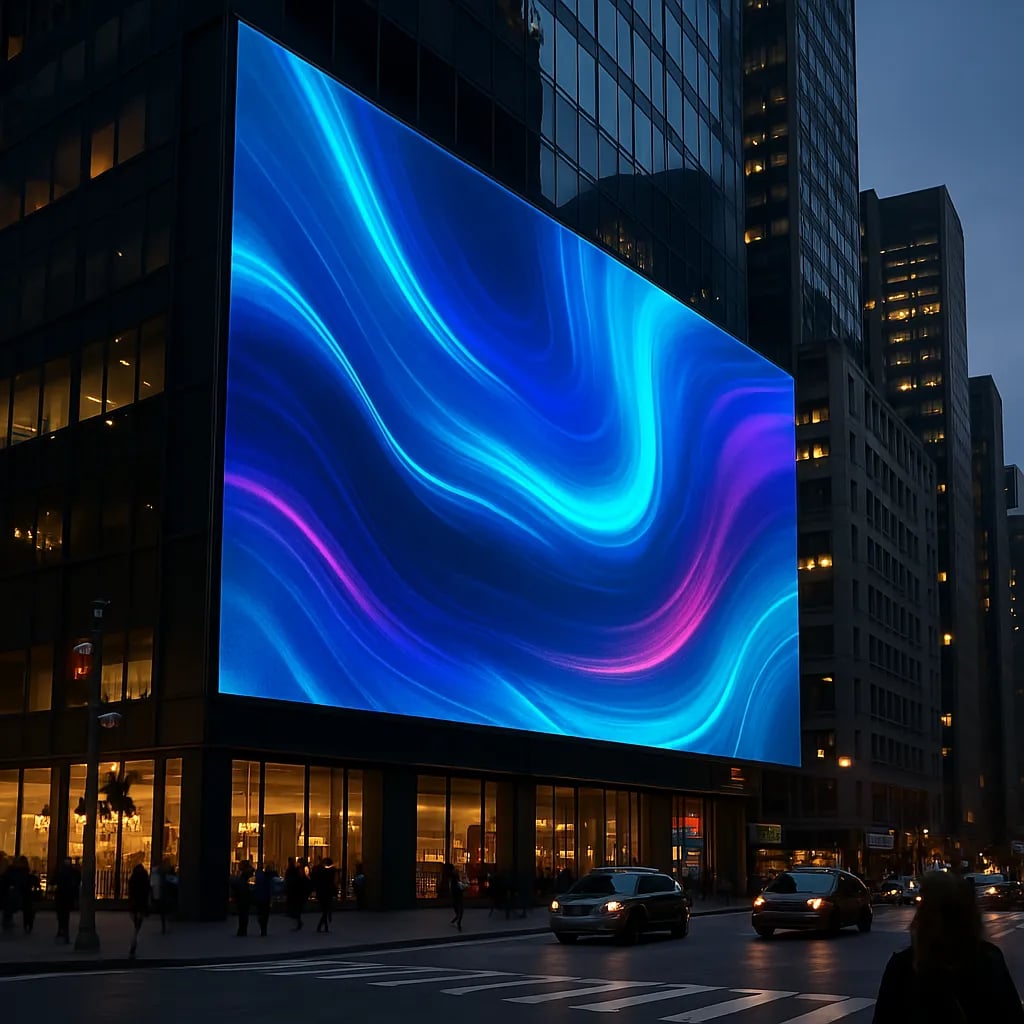

Rental
Rental solutions
- Modular construction for quick assembly
- Lightweight and durable design for easy handling
- High image quality even for short-term use
- Fast adaptation to various formats and shapes
Suitable for:
- Concerts and cultural events
- Exhibitions and trade fairs
- Corporate presentations
- Events and celebrations

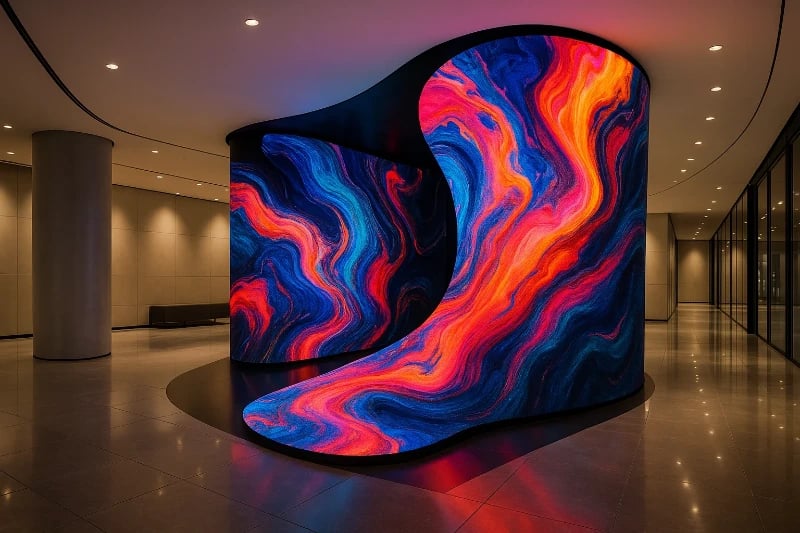

Creative solutions
Creative LED installations
We create unique visual concepts including curved, convex or concave screens. LED walls can be shaped to match architectural elements and installed in spaces with unusual dimensions.
- Dynamic shapes for a unique visual effect
- Integration into both interior and exterior spaces
- Customisable colours and format
LED displays tailored to your application

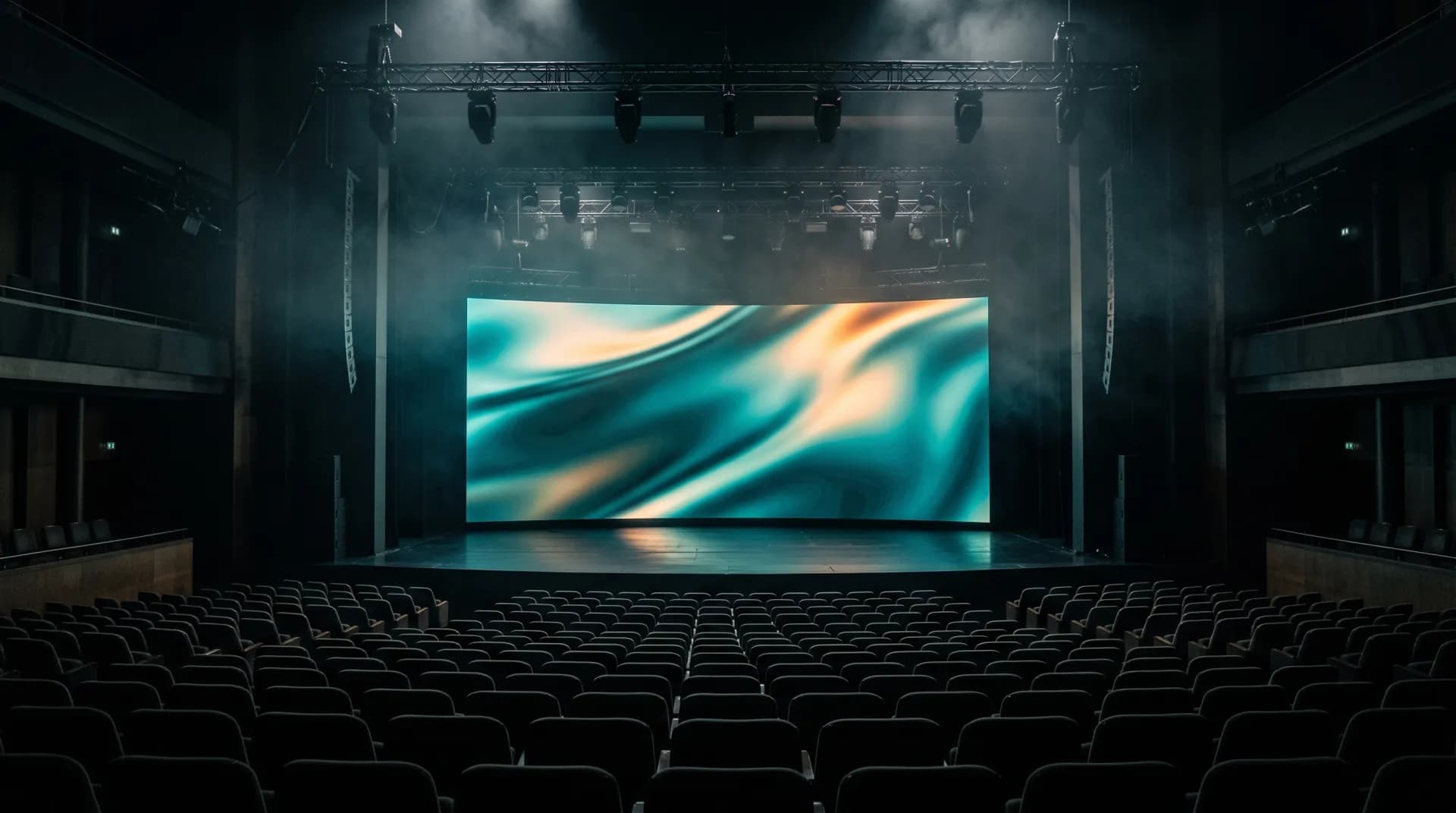

Large halls and stadiums
High brightness and large format for audiences across the entire auditorium - reliable display for sports, cultural events and corporate gatherings.

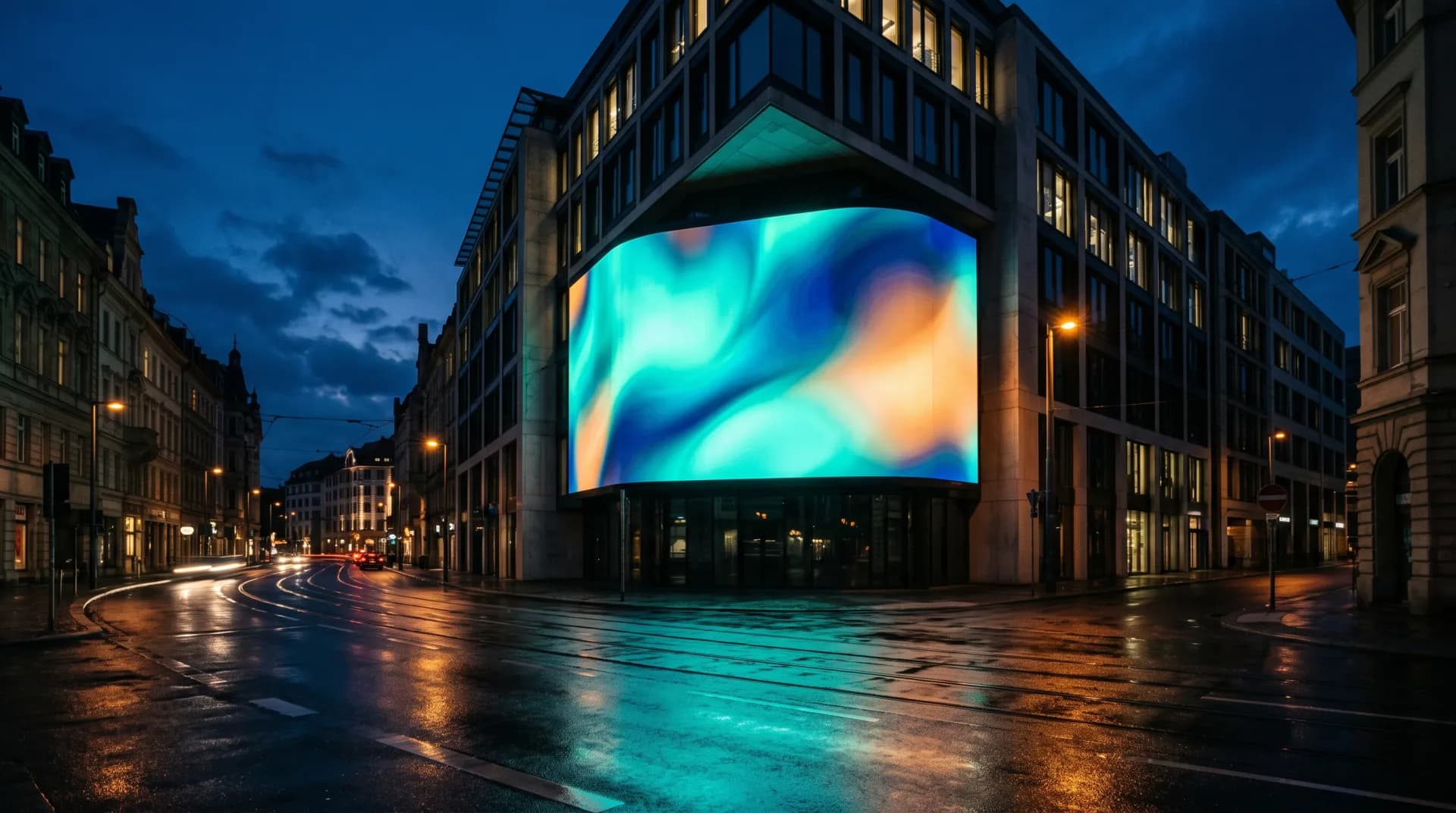

Outdoor facades and DOOH
Weatherproof design, bright image even in direct sunlight - for advertising surfaces, building facades and DOOH networks.
Retail and foyer
Draw customers in with dynamic content in retail spaces, entrance halls and cultural centre foyers.

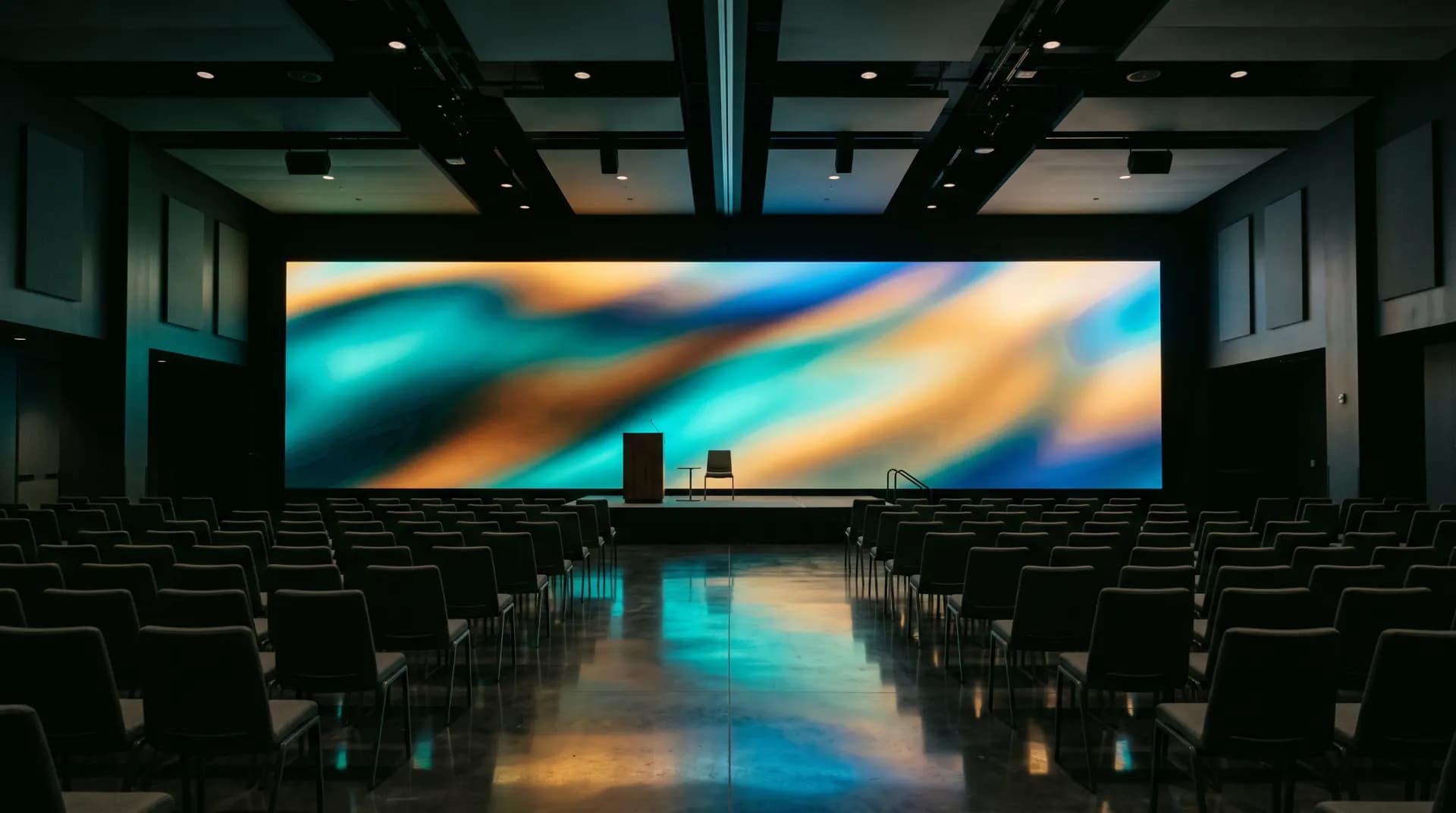

Conference and corporate spaces
Professional image for presentations, meetings and corporate communications - tailored to corporate environments.

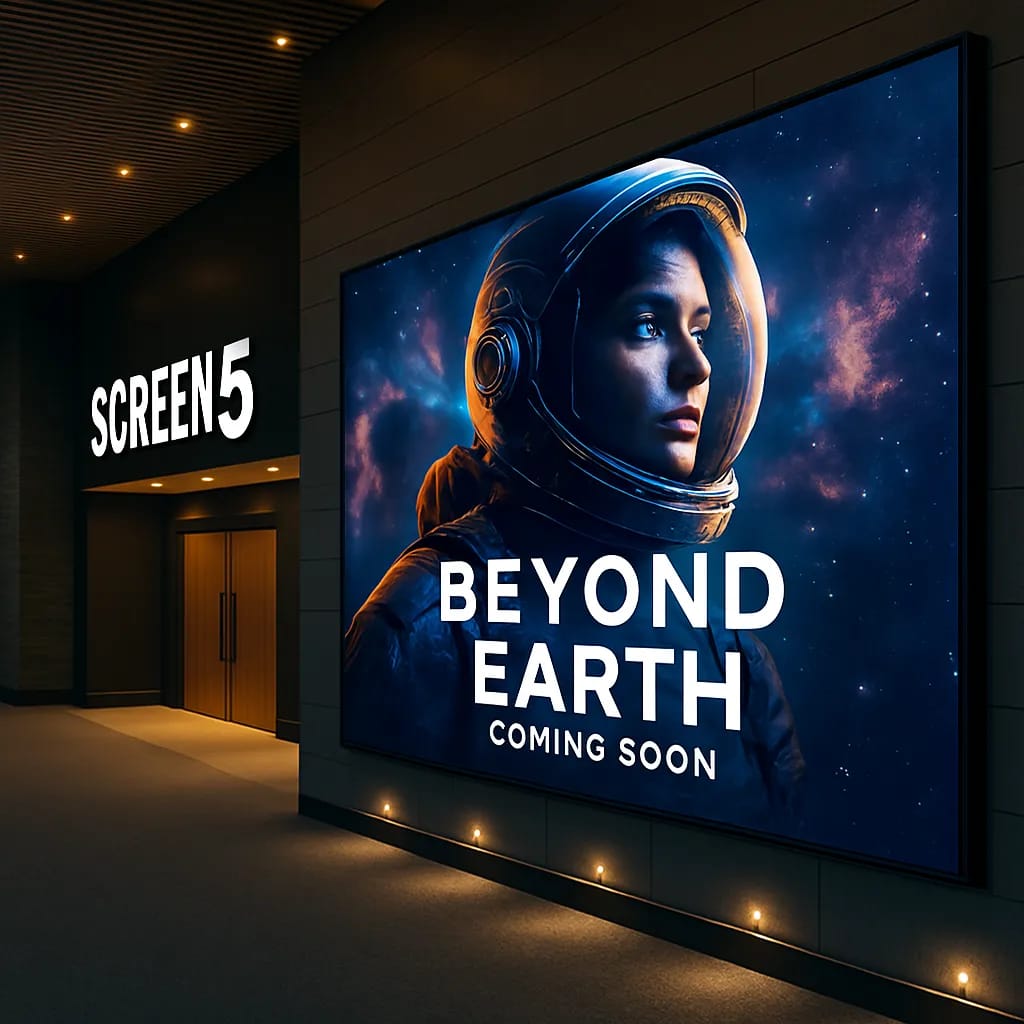

Cinema and cultural centres
A multi-purpose LED wall handles film screenings, concerts and live streams - synergy with XC tech DCI know-how that no other integrator can offer.
How to choose the right pixel pitch?
Pixel pitch determines image sharpness and minimum viewing distance. Move the slider to find the right pitch for your space.
Sharpness preview for selected pitch
Sharp image from
6.5 m
AVIXA VAD = P x 3,438
Minimum distance
1.9 m
Pravidlo 10x (pitch x 10 / 10)
Typical use
Conference halls, cinema foyer
Pixel pitch and viewing distance reference
| Pitch | Retina distance | Min. distance | Application |
|---|---|---|---|
| P0.9 | 3.1 m | 0.9 m | Control rooms and close-range viewing |
| P1.2 | 4.1 m | 1.2 m | Control rooms and close-range viewing |
| P1.5 | 5.2 m | 1.5 m | Conference halls, cinema foyer |
| P1.8 | 6.2 m | 1.8 m | Conference halls, cinema foyer |
| P1.9 | 6.5 m | 1.9 m | Conference halls, cinema foyer |
| P2.5 | 8.6 m | 2.5 m | Presentations, retail, showrooms |
| P2.9 | 10 m | 2.9 m | Presentations, retail, showrooms |
| P3.9 | 13.4 m | 3.9 m | Presentations, retail, showrooms |
| P4.8 | 16.5 m | 4.8 m | Large halls, indoor stadiums |
| P6 | 20.6 m | 6 m | Outdoor and long-distance viewing |
| P10 | 34.4 m | 10 m | Outdoor and long-distance viewing |
What does pixel pitch actually look like?
Pick a pitch and see how dense the LED grid is. The minimum viewer distance follows the 1 mm pitch ≈ 1 m rule; individual dots fully blend from roughly 3.4× that distance (the limit of visual acuity). A real wall blends even sooner - glowing LEDs bloom optically.
View:
1 dot = 1 LED, pitch 2.9 mmMinimum distance approx. 2.9 m · dots fully blend from approx. 10 m (visual acuity).
Open the standalone simulator with distance rules and calibration→
Indoor or outdoor LED wall? Parameter comparison
An indoor LED display and an outdoor LED wall differ mainly in pixel pitch, brightness and ingress protection. The table summarises the key parameters to compare before choosing a solution.
| Parameter | Indoor LED wall | Outdoor LED wall |
|---|---|---|
| Pixel pitch | Typically 1.5 to 2.5 mm - a fine grid for close viewing | Typically 4 to 10 mm - viewers watch from a greater distance |
| Brightness | Lower maximum brightness, sufficient for controlled indoor lighting | Significantly higher brightness for readability even in direct sunlight |
| Ingress protection and durability | Standard build for indoor spaces | IP65 and higher - protection against rain, dust and temperature swings |
| Typical cabinet size | 500 × 500 mm | 960 × 960 mm |
| Average power draw (indicative) | approx. 0.35 kW per m² | approx. 0.6 kW per m² |
| Weight (indicative) | approx. 30 kg per m² | approx. 45 kg per m² |
| Typical applications | Conference halls, cinema lobbies, retail, cultural centres and presentation rooms | Advertising surfaces, facades, sports stadiums, outdoor stages and DOOH networks |
Power draw and weight are indicative values per square metre; the exact figures always depend on the specific configuration. Enter your dimensions in the configurator below for an instant estimate.
LED wall configurator
Enter your LED wall parameters and get an instant orientation specification - resolution, power draw, weight and price band.
Result specification
- Resolution
- 2104 x 1315 px
- Megapixels
- 2.77 Mpx
- Physical size
- 4 x 2.5 m
- Diagonal
- 4.72 m (185.8")
- Cabinet count
- 40 ks (8 x 5)
- Power draw (average)
- 3.5 kW
- Weight
- 300 kg
- Recommended distance (retina)
- 6.5 m
- Minimum distance
- 1.9 m
- Typical use
- Conference halls, cinema foyer
Non-binding inquiry - your configuration is attached to the message.
Cabinet layout preview
Need a complete design including controller and spec sheet? Open the LED calculator→
ready-made range
Ready-made LED wall configurations
Standard sizes that come up most often in practice, with pixel pitch variants based on viewing distance. Every configuration is delivered turnkey including controller, structure, installation and service with remote monitoring. Missing your size? Use the configurator above and we will size a wall to fit.

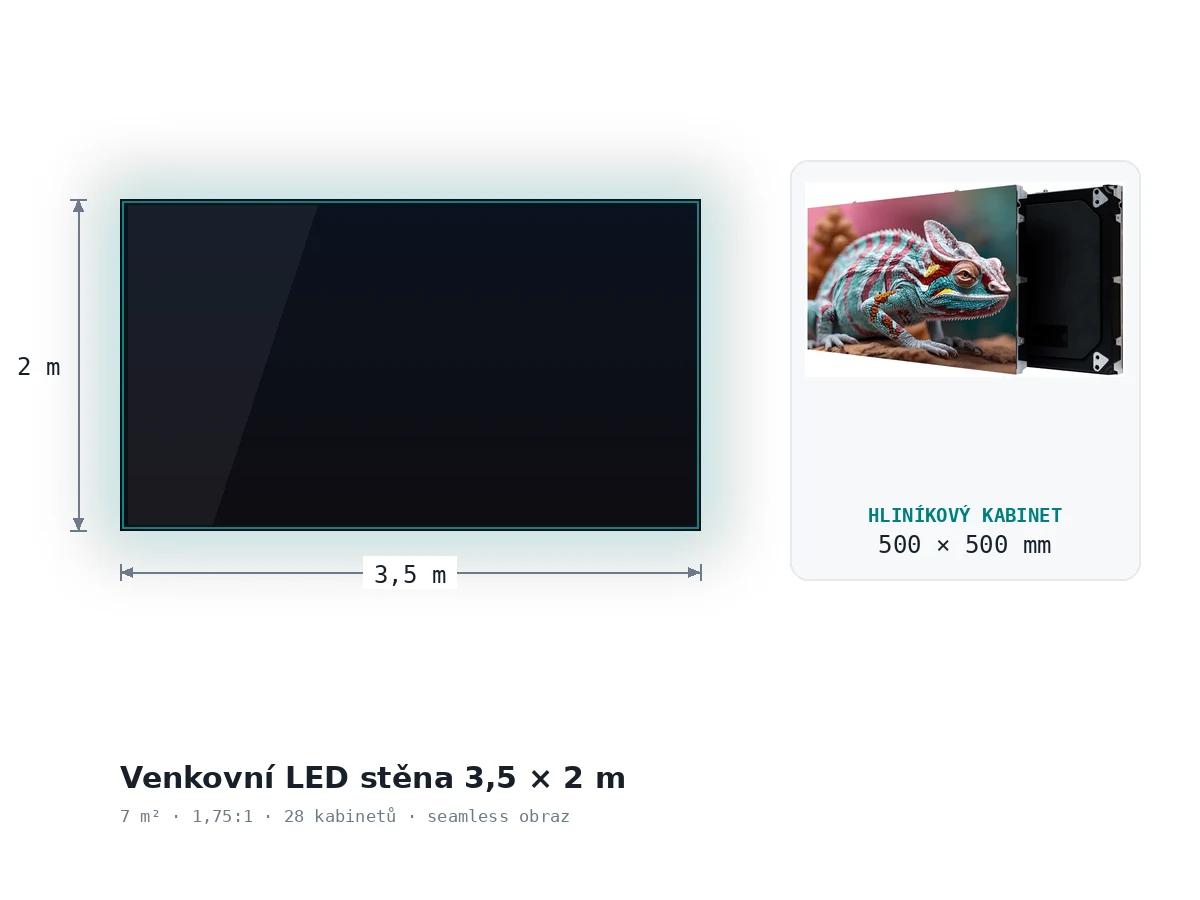

Outdoor LED wall 3,5 × 2 m
7 m² · pitch P1.8 / P2.6 / P3.9
View configuration
Outdoor LED wall 4,5 × 2,5 m
11,25 m² · pitch P2.6 / P3.9
View configuration
Outdoor LED wall 5,5 × 3 m
16,5 m² · pitch P2.6 / P3.9
View configuration
Outdoor LED wall 7 × 4 m
28 m² · pitch P2.6 / P3.9
View configuration

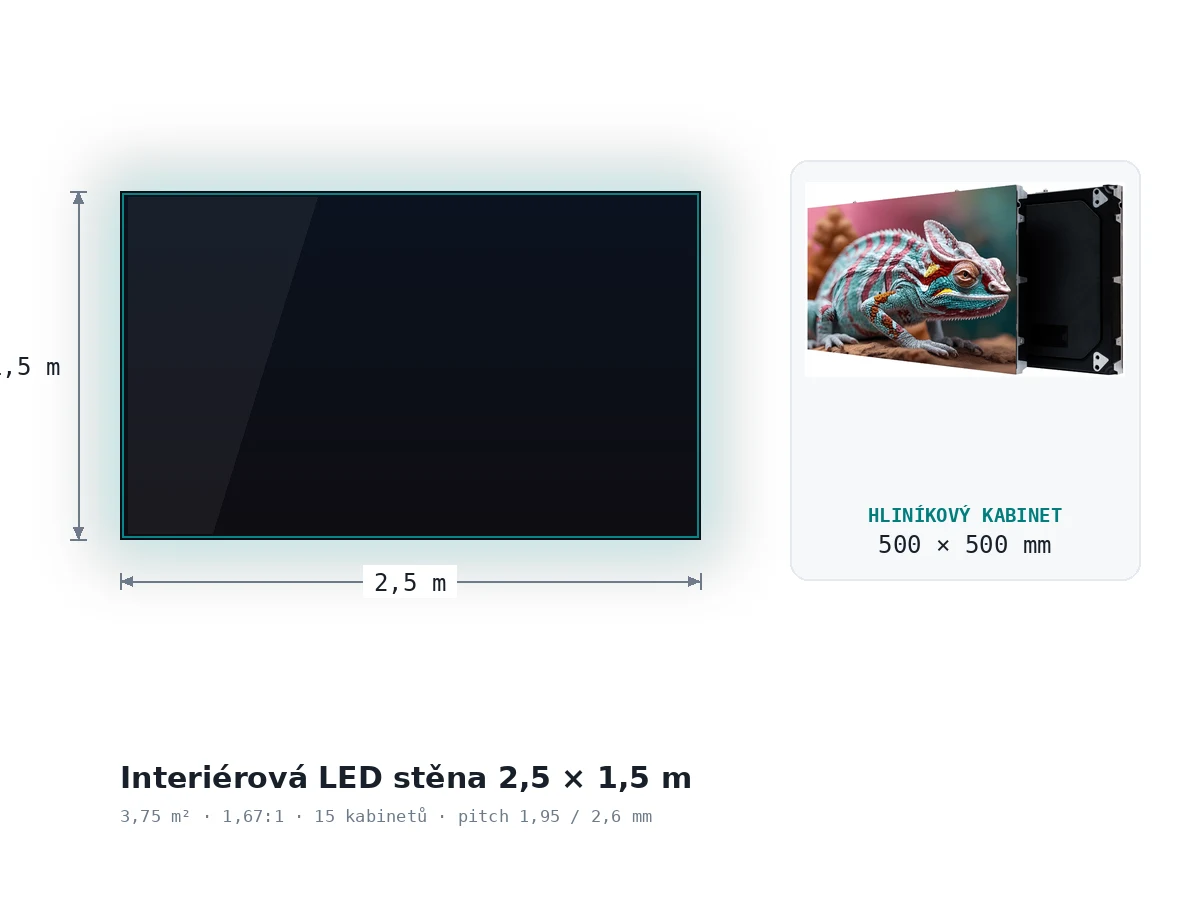

Indoor LED wall 2,5 × 1,5 m
3,75 m² · pitch P1.95 / P2.6
View configuration
Indoor LED wall 3,5 × 2 m
7 m² · pitch P1.95 / P2.6

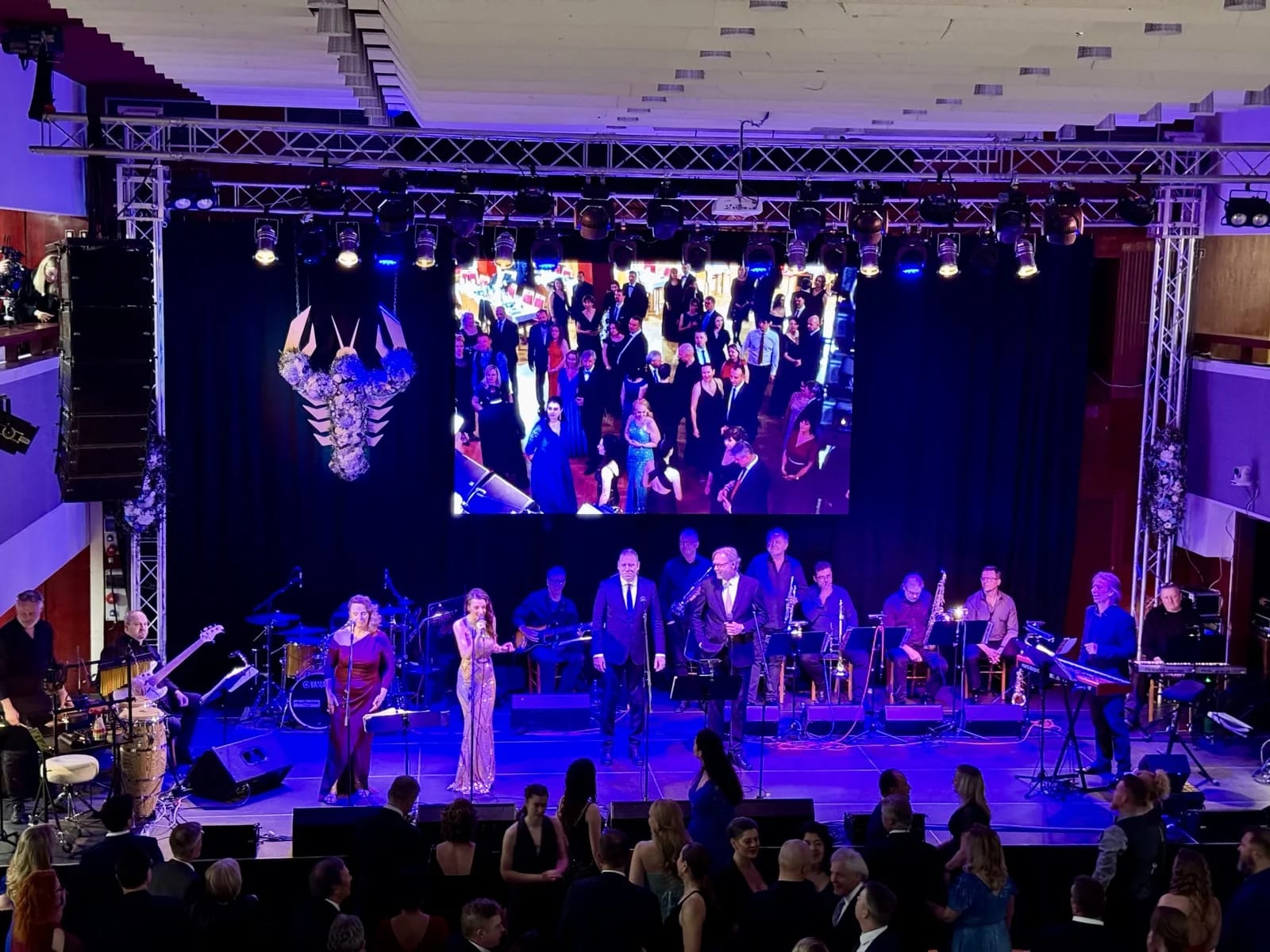

View configurationLED wall at the Rakovnik Cultural Centre
- Wall dimensions
- 4 × 2.5 m
- Pixel pitch
- 1.95 mm
- Brightness
- 800 cd/m²
- Weight
- 400 kg
- Installation
- Electric fly system with remote control
XC TECH designed and installed a multi-purpose LED wall in the main hall of the Rakovnik Cultural Centre. The 4 x 2.5 m screen with a 1.95 mm pixel pitch is mounted on an electric fly system with remote control, and supports film screenings, concerts and presentations - managed from any device via the dedicated LED Wall Control app.
LED WallCultural CentreCinemaPresentationsLED Wall Control
View reference
Frequently asked questions - LED displays
Get a design and a quote
Tell us the space, viewing distance and what the screen should show. We will propose the pixel pitch, size and build, and prepare a project quote including installation and service.
Wondering what drives the price? See how much an LED wall costs.
Need a custom LED wall? Get in touch.
Free consultation and quote. We will design the optimal solution for your space.
