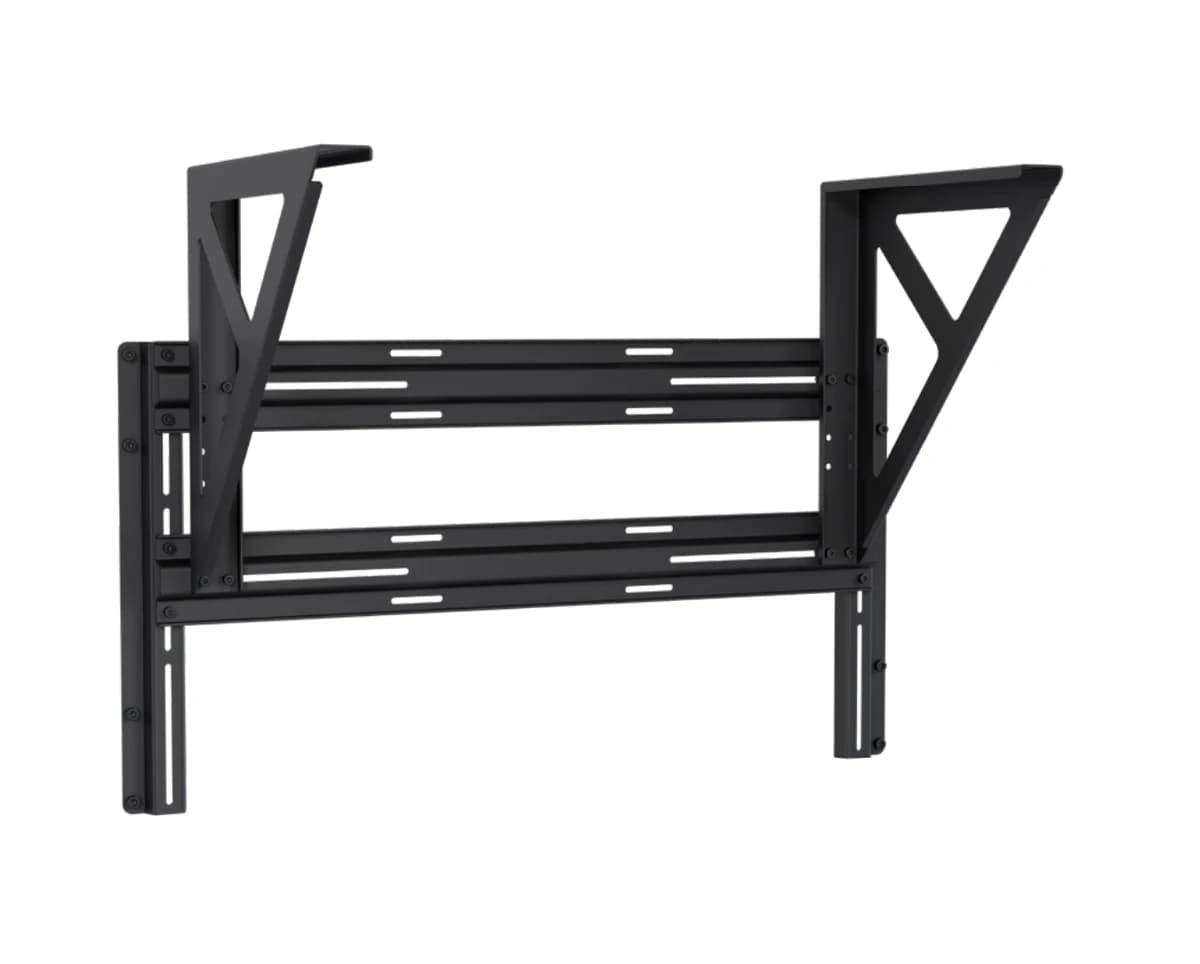

3D system bracket for pedestal
PN XC-PED-3DH

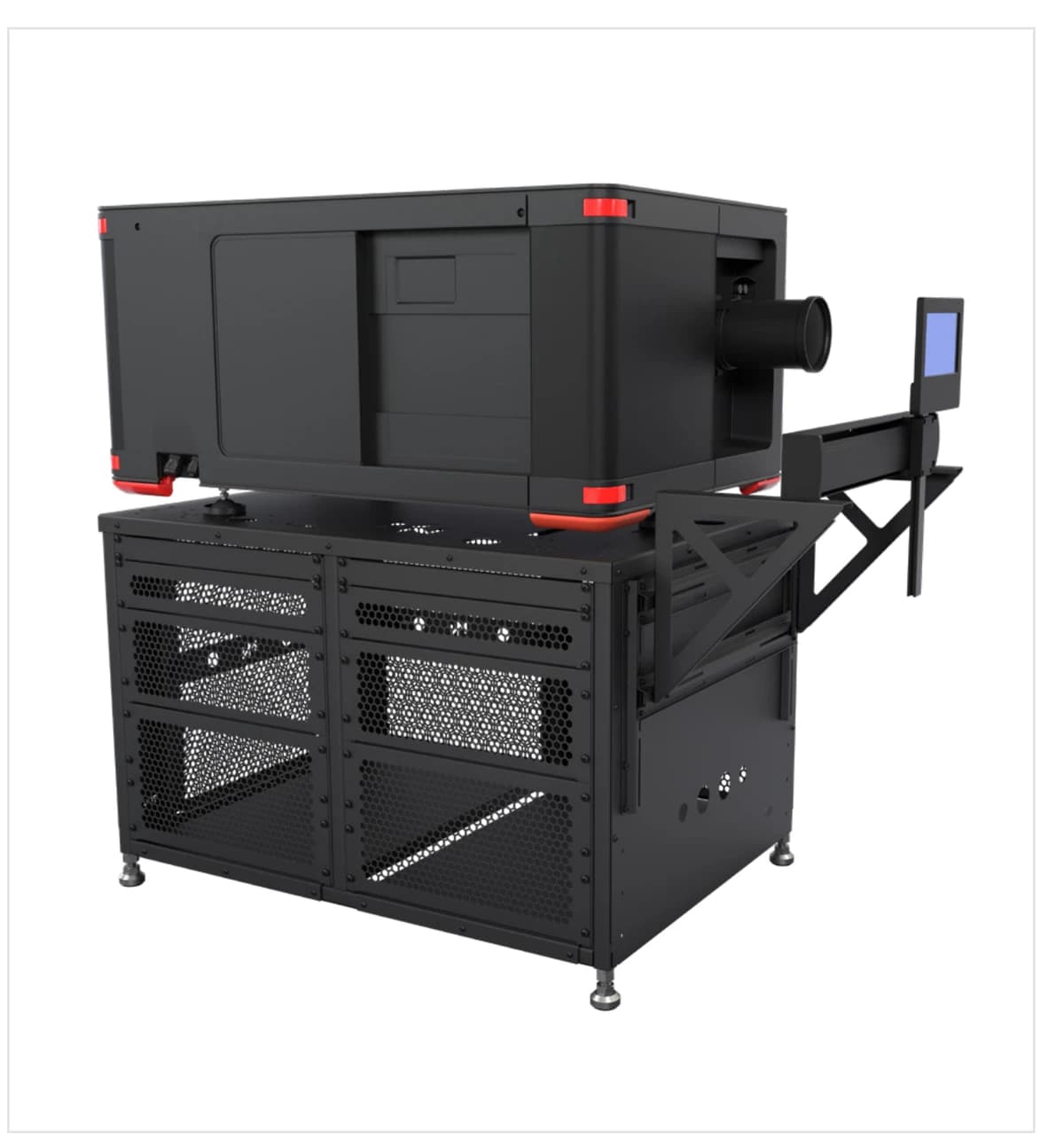

A universal frame in front of the projector lens for mounting a 3D system. Adjustable 260 to 560 mm in width, 150 mm in height and 285 mm in depth, rated for 20 kg. Fits any type of pedestal, finished in anti-corrosion powder paint. A reinforced version with side extensions covers a wider installation range.
Technical specifications
| Parametry | |
|---|---|
| Weight capacity | 20 kg |
| Width adjustment | 260 to 560 mm |
| Height and depth adjustment | 150 / 285 mm |
| Rozměry | |
| Dimensions (W × D × H) | 694 × 333 × 505 mm |
| Net weight | 4.7 kg |
| Varianty | |
| Reinforced version | side extensions, 755 × 490 × 680 mm, 8 kg |
