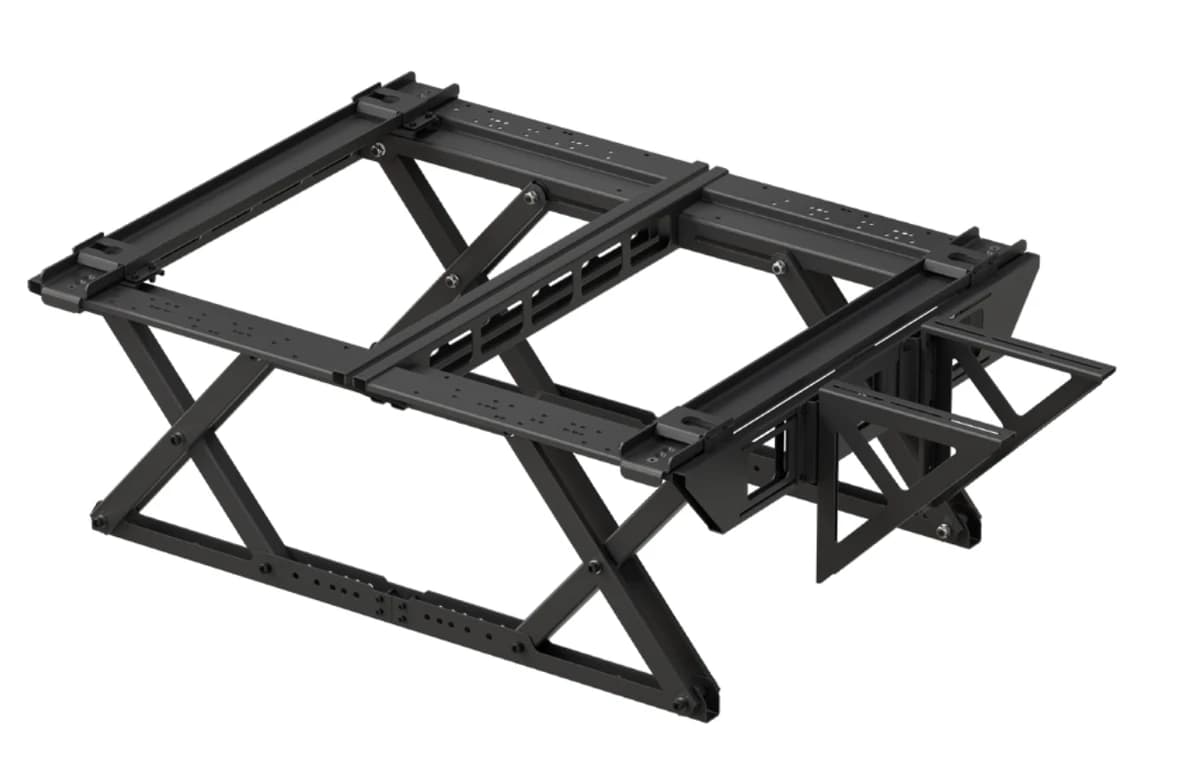

Projector hoist for pedestal 150-450 mm
PN XC-PED-LIFT-450
A scissor hoist between the pedestal and the projector that sets the image height anywhere from 150 to 450 mm above the plate. Rated for 600 kg, with holes for several rail spacings so it fits different projector types. A 3D system bracket can be added to it.
Technical specifications
| Parametry | |
|---|---|
| Height adjustment | 150 to 450 mm |
| Weight capacity | 600 kg |
| Rozměry | |
| Dimensions (W × D × H) | 1,453 × 900 × 450 mm |
| Net weight | 42 kg |
